Identity Federation for Automated Workflows

Identity Federation allows you to authenticate to Border0 using trusted external identity providers (IdPs) without managing long-lived credentials. This is particularly useful for CI/CD pipelines, GitHub Actions, and other automated workflows.

Overview

Identity Federation enables:

Password-less Authentication: No need to store or rotate long-lived tokens
Impersonating a Service Account: Temporary credentials are for a single Border0 service account and carry the same level of permissions as any long-lived credential for that service account
Border0 Policy and Auditing: All sessions for federated identities are recorded and subject to Border0 policies, like any human or non-human in your organization
OIDC Issuer Agnostic: Federation works for explicit services e.g. GitHub, GitLab, CircleCI, and AWS, but also for any generic OIDC issuer.

How It Works

Configure Federation Rules: Define which OIDC issuers and subjects can authenticate to your service account
Obtain OIDC Token: Your CI/CD platform (e.g., GitHub Actions) obtains an OIDC token from its identity provider
Exchange Token: The OIDC token is exchanged for a short-lived Border0 token via the Border0 API
Use Border0 Token: The Border0 token can be used to authenticate to Border0 services

┌─────────────────┐
│  GitHub Actions │
│   (or CI/CD)    │
└────────┬────────┘
         │
         │ 1. Request OIDC token
         ▼
┌─────────────────┐
│  GitHub IdP     │
│  (OIDC Issuer)  │
└────────┬────────┘
         │
         │ 2. Return OIDC token
         ▼
┌─────────────────┐
│  Border0 API    │
│  /auth/web_     │
│  identity/      │
│  exchange       │
└────────┬────────┘
         │
         │ 3. Validate & Exchange
         │    - Verify token signature
         │    - Check issuer/subject
         │    - Match federation rules
         │
         ▼
┌─────────────────┐
│  Border0 Token  │
│  (short-lived)  │
└─────────────────┘

Setting Up Identity Federation

Identity Federation for a given Service Account is managed through Identity Federation Rules.

A rule consists of an issuer URL and a set of allowed subject patterns. For example, the rule:

Issuer: https://token.actions.githubusercontent.com
Patterns:
- repo:adrianosela/border0-demo:*
- repo:borderzero/examples:ref:refs/heads/main

Allows workflows with GitHub Action issued tokens matching the subjects (sub JWT claim) above.

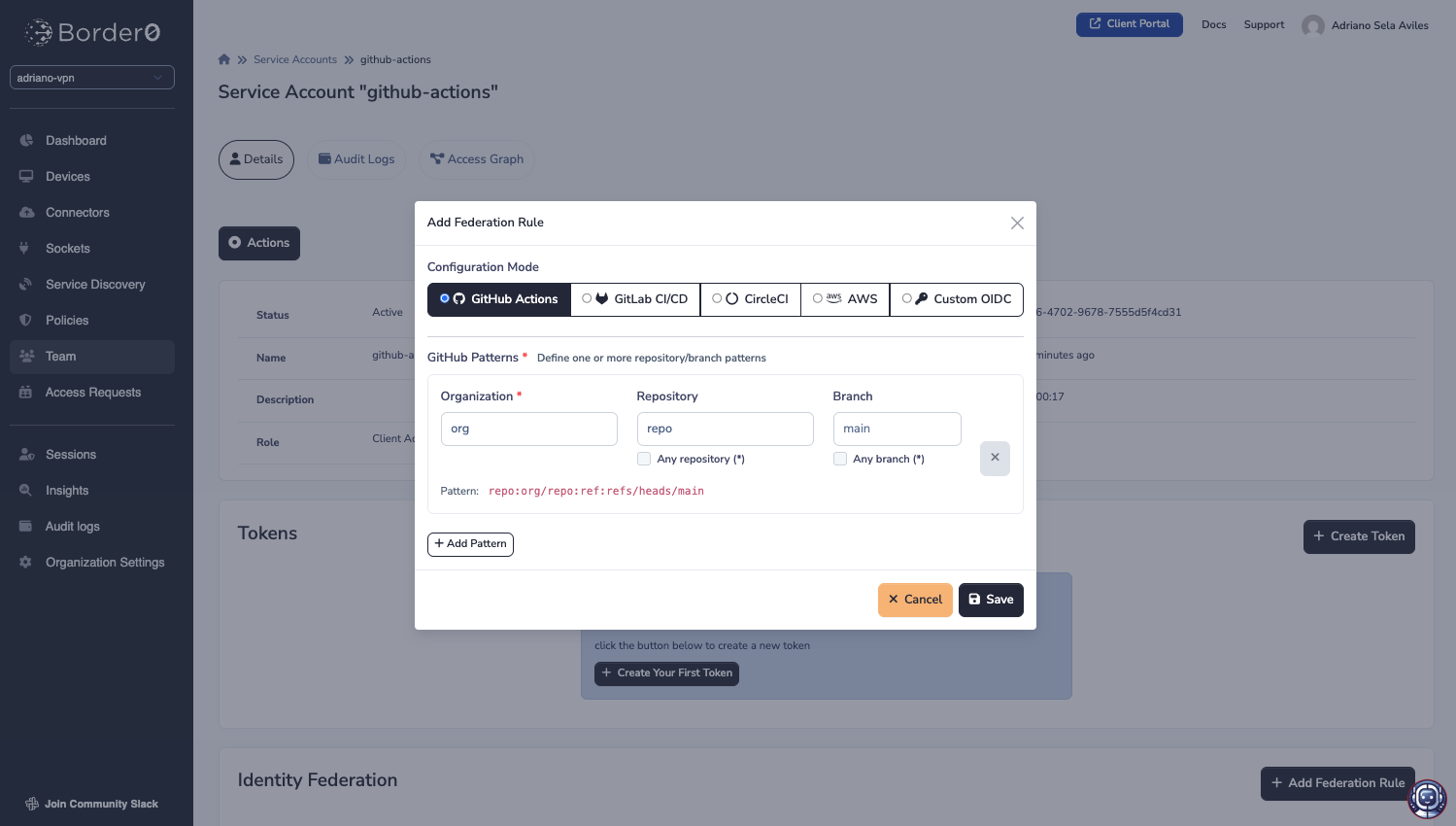

You may set-up such a rule by navigating to the Border0 Admin Portal Team > Service Accounts > Click on a Service Account to view details > Click the "+ Add Federation Rule".

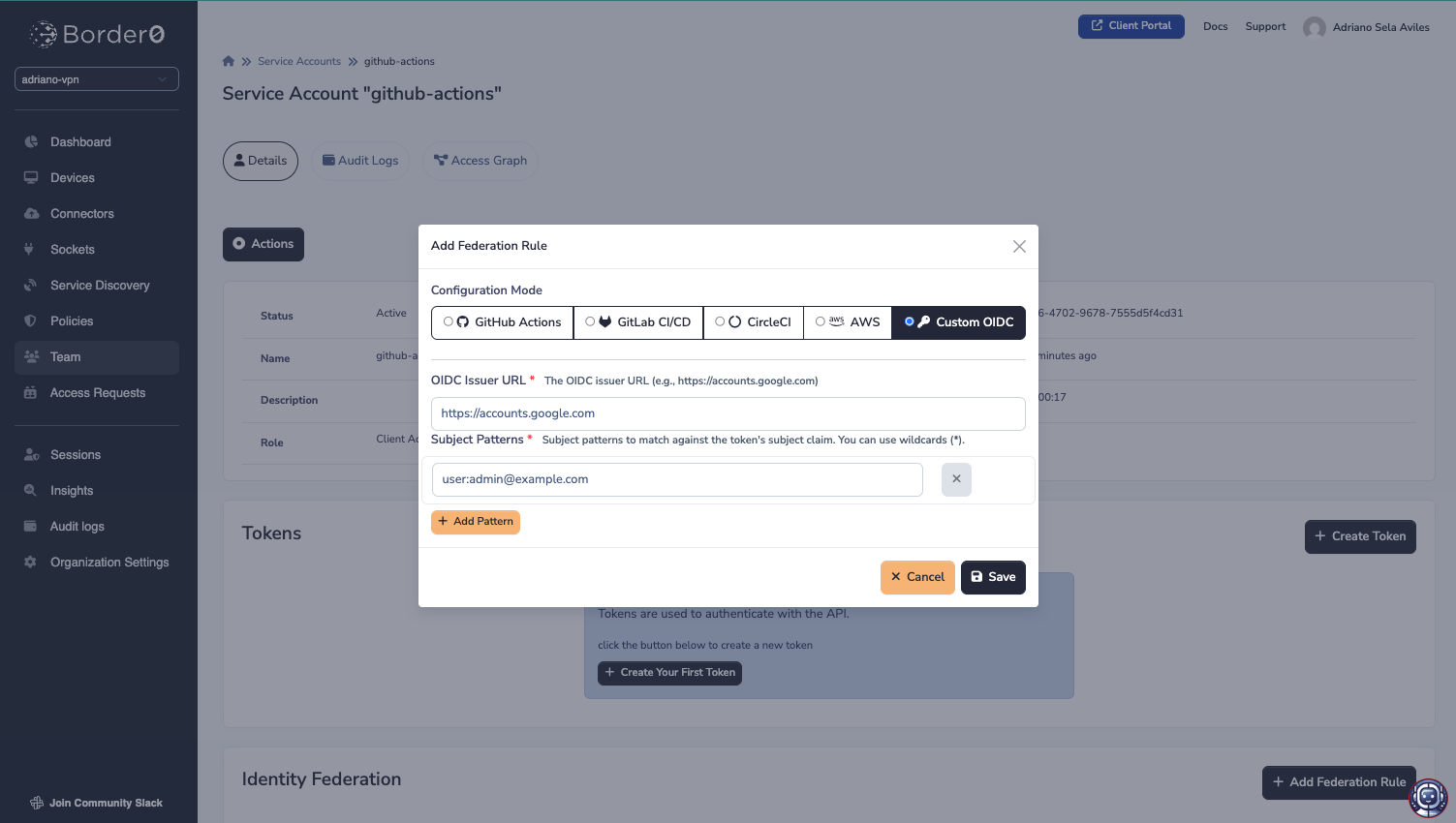

Note that while there are specifically handled issuers such as GitHub Actions, GitLab CI/CD, CircleCI, and AWS, you may also add a rule for a custom OIDC issuer:

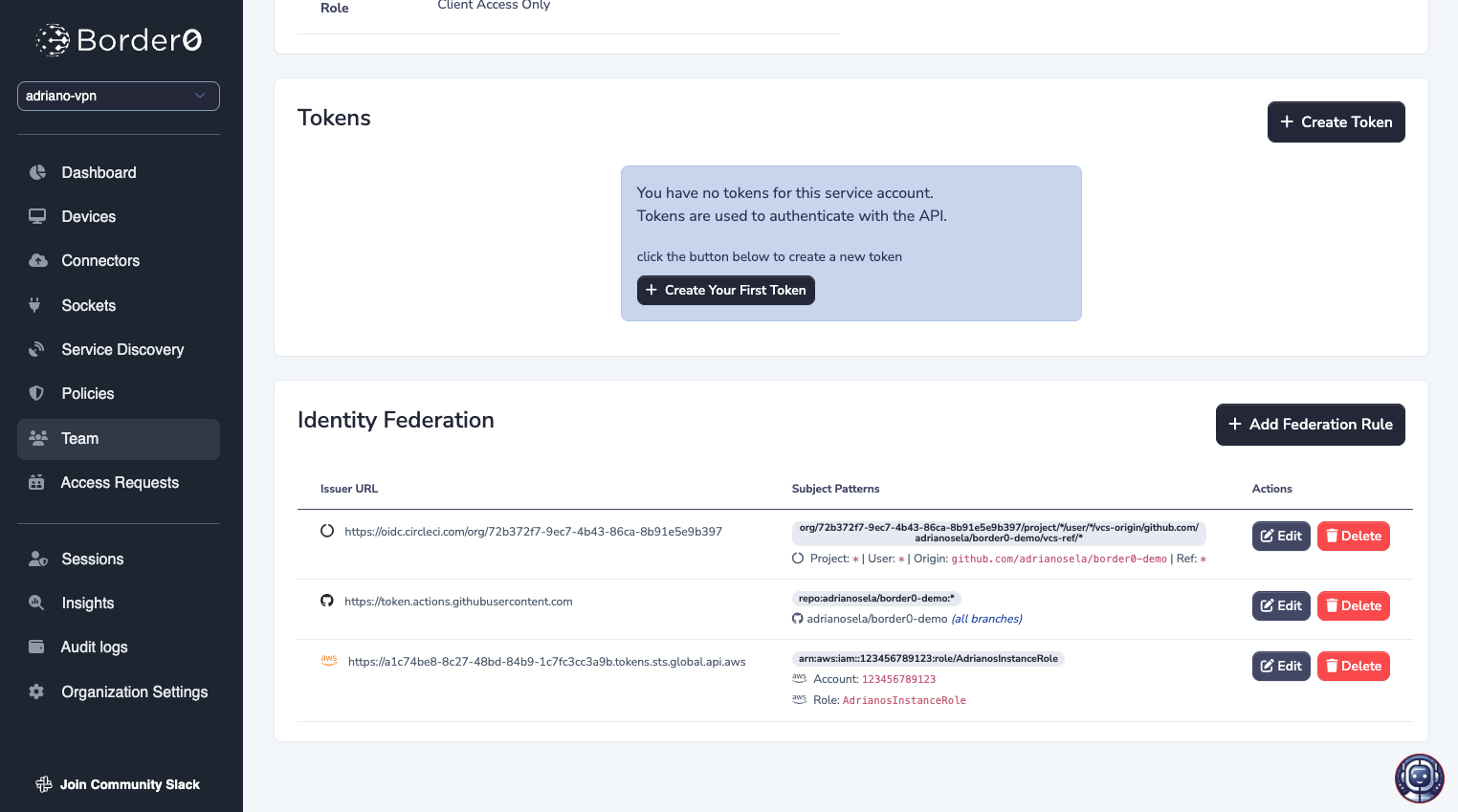

Once you save the rules, you should see it in the Identity Federation table at the bottom of the page.

You can have multiple rules, for different providers, each with potentially multiple patterns, all for the same service account:

Exchanging OIDC Tokens for Border0 Tokens

Token Requirements

To exchange an OIDC token from a third-party issuer, the OIDC token must:

Have audience (aud) set to string api.border0.com (or if array, include the string api.border0.com)
Be signed by the issuer using RS256, RS384, RS512, or EdDSA
Include a valid issuer (iss) claim
Include a subject (sub) claim that matches a federation rule pattern
Not be expired

API Endpoint

For a workflow to exchange its service provider token for a Border0 service account token, they must hit the following API endpoint:

POST /api/v1/auth/web_identity/exchange

With the following request body:

{
  "organization_subdomain": "myorg",
  "service_account_name": "github-actions",
  "web_identity_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9...",
  "border0_token_duration_seconds": 3600
}

Parameters:

organization_subdomain (required): Your Border0 organization subdomain
service_account_name (required): The service account name
web_identity_token (required): The OIDC token from your identity provider
border0_token_duration_seconds (optional): Token expiration (default: 900, max: 43200)
border0_token_name_prefix (optional): Prefix for the generated token name (max 25 chars)

Response:

The response will contain a single token field with your workflow's short-lived Border0 token.

{
  "token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9..."
}

GitHub Actions Integration

Border0 provides two GitHub Actions for seamless integration:

configure-border0-credentials

Exchanges GitHub's OIDC token for Border0 credentials.

name: Example Workflow
on: workflow_dispatch

permissions:
  id-token: write  # Required for OIDC token
  contents: read

jobs:
  example:
    runs-on: ubuntu-latest
    steps:
      - name: Configure Border0 Credentials
        id: border0
        uses: borderzero/[email protected]
        with:
          border0-org-subdomain: myorg
          border0-svc-account-name: github-actions
          border0-token-duration-seconds: 3600

      - name: Use Border0 Token
        run: |
          echo "Token obtained successfully"
          border0 socket ls
        env:
          BORDER0_TOKEN: ${{ steps.border0.outputs.token }}

Inputs:

border0-org-subdomain (required): Your Border0 organization subdomain
border0-svc-account-name (required): Service account name with federation rules
border0-token-duration-seconds (optional): Token duration in seconds (default: 3600)
border0-api-url (optional): Border0 API base URL

Outputs:

token: The Border0 authentication token

configure-border0-network

Installs Border0 and starts a VPN node using identity federation.

name: Access Private Resources
on: workflow_dispatch

permissions:
  id-token: write
  contents: read

jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Start Border0 VPN
        id: border0-vpn
        uses: borderzero/[email protected]
        with:
          border0-org-subdomain: myorg
          border0-svc-account-name: github-actions
          border0-token-duration-seconds: 900

      - name: Access Private Database
        run: |
          # Now you can access resources over Border0 network
          psql -h private-db-border0-internal -U myuser -d mydb

      - name: Stop Border0 VPN
        if: always()
        run: bash ${{ steps.border0-vpn.outputs.cleanup-script }}

Inputs:

border0-org-subdomain (required): Border0 organization subdomain
border0-svc-account-name (required): Service account name
border0-token-duration-seconds (optional): Token duration (default: 3600)
vpn-wait-seconds (optional): Seconds to wait for VPN connection (default: 5)
debug (optional): Enable debug output (default: false)

Alternatively, use with a pre-existing token:

- name: Start Border0 VPN
  id: border0-vpn
  uses: borderzero/[email protected]
  with:
    border0-token: ${{ secrets.BORDER0_TOKEN }}

Security Considerations

Subject Pattern Wildcards

Subject patterns support wildcard matching using *:

* matches any sequence of characters within a single segment
Use specific patterns when possible to minimize access

Examples:

repo:myorg/*:* - Broad: All repos in myorg
repo:myorg/myrepo:* - Better: Specific repo
repo:myorg/myrepo:ref:refs/heads/main - Best: Specific branch

Token Duration

Minimum Duration: 1 second
Maximum Duration: 43,200 seconds (12 hours)
Default Duration: 900 seconds (15 minutes)
Recommendation: Use the shortest duration that meets your needs

Troubleshooting

"Token signature verification failed"

Cause: The OIDC token's signature could not be verified.

Solutions:

Ensure the issuer's OIDC configuration is accessible at {issuer}/.well-known/openid-configuration
Verify the token hasn't been modified
Check that the issuer uses a supported signing algorithm (RS256, RS384, RS512, EdDSA)

"Token audience not allowed"

Cause: The OIDC token's aud claim doesn't match the required audience.

Solutions:

Ensure your IdP is configured to issue tokens with audience api.border0.com
In GitHub Actions: Use core.getIDToken("api.border0.com") to request a token with the correct audience
In CircleCI: Use circleci run oidc get --claims "{\"aud\":\"api.border0.com\"}"

"Token subject not allowed"

Cause: The token's subject doesn't match any configured federation rule patterns.

Solutions:

Review your federation rules
Check the subject claim in your OIDC token
Update subject patterns to include the actual subject

"Service account has no applicable federation rules"

Cause: No federation rules are configured for the issuer.

Solutions:

Add a federation rule for your issuer
Verify the issuer URL exactly matches (including https://)

"Requested token duration exceeds maximum"

Cause: Token duration requested exceeds 43,200 seconds (12 hours).

Solutions:

Reduce border0_token_duration_seconds to 43,200 or less
Use multiple shorter-lived tokens instead of one long-lived token
